2-5154-e1

Double Stationary Drum Roller. Ex-Proof 1-PH 115/230V 60Hz Motor. REQUIRES Start/Stop Controls. OSHA REQUIRES Enclosure with Interlock.

Industrial drum rollers to mix drum contents
|Drum Handling SAFETY Features

• Mix right inside a closed drum. Nothing to insert into drum.
• Eliminate transfer, special vessels and hazards of worker exposure
• Reduce spills and clean-up

|Load horizontal drum onto barrel roller with your hoist and a drum lifter
|Roll standard 55-gallon (210 liter) steel drum to mix contents
|1-5154 Series Single Drum Rollers roll ONE drum

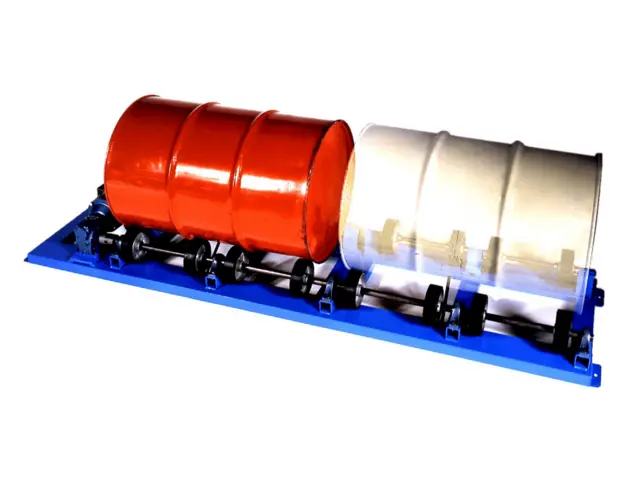

|2-5154 Series Double Drum Rollers roll 1 or 2 drums at a time
|Select Barrel Roller model with fixed or variable drum rotating speed
|Add Option to roll plastic drum or Idler Attachment to roll 1-to-5 gallon can

Model 2-5154-E1 has 1 HP Explosion-Proof single-phase 60Hz electric motor
|Explosion Proof Motor is rated for Class I Group D, and Class II Groups F and G
|Rolls ONE or TWO drums at 20 RPM, based on 22.5″ (57 cm) diameter
|REQUIRES Electric Control Box to Start / Stop Rotator
|Electric Control Package sold separately

• Model CP-2-5154-E1-115 for single-phase 115V 60Hz power supply
• Model CP-2-5154-E1-230 for single-phase 230V 60Hz power supply

|Guard Enclosure with Interlock sold separately as Kit GEK-2-5154-E1

Lead Time: 20 Days
