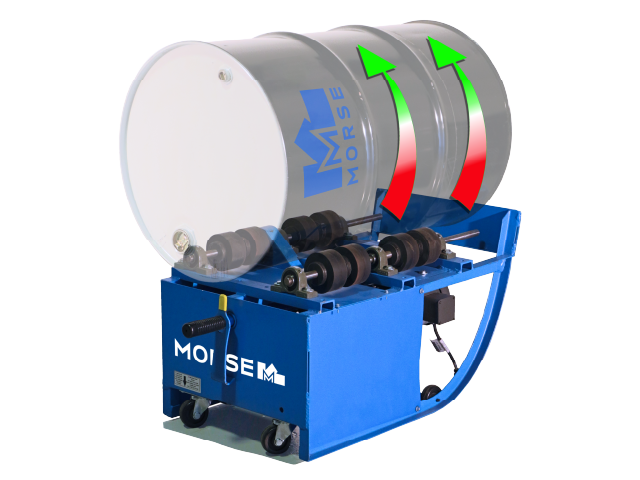

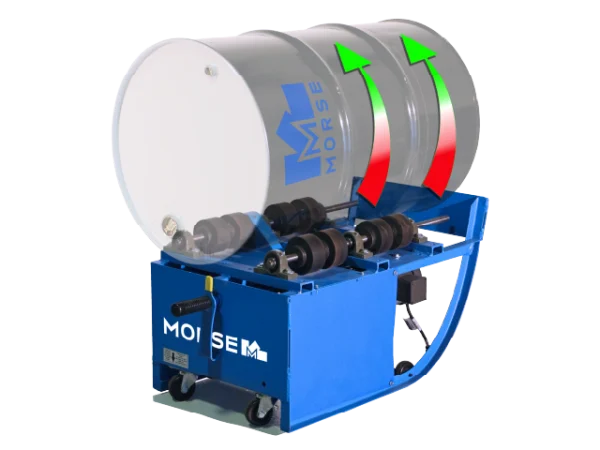

201/20-E3

Portable Drum Roller, Fixed Speed. Exp-Proof 3-PH 208-230/460V 60Hz Motor. REQUIRES Start/Stop Controls. OSHA REQUIRES Enclosure w/ Interlock

Compact industrial drum mixers / barrel mixers
|Roll closed drum on its side to agitate contents and remix settled ingredients
|Drum Handling SAFETY Features

• Load upright drum at floor-level with drum truck, etc.
• Extend handle to rock drum over to horizontal
• Mix right inside a closed drum. Nothing to insert into drum.
• Reduce spills, hazards and worker exposure
• Eliminate transfer, clean-up, and special vessels

|Mix 30 or 55 gallon (114 or 210 liter) steel drum
|Use as drain stand to dispense drum
|Select Fixed or Variable Speed Drum Roller
|Electric or Air powered drum rollers available
|Add Option to roll PLASTIC drum or Idler Attachment for 1 to 5 gallon (2 to 20 liter) size can or pail

Model 201/20-E3 has 1/2 HP explosion-proof 3-phase 208-230/460V 60Hz motor
|Rolls drum on 8 wheels at 20 RPM, based on 22.5″ (57 cm) diameter
|Roll STEEL drum

• With 6″ to 28″ (15 to 71 cm) diameter
• Up to 40″ (102 cm) tall

|To roll PLASTIC drum, add Option POLY-201 with extra wheels and end stop to prevent drum traveling length-ways
|To roll 1 to 5 gallon (2 to 20 liter) size cylindrical can, add Idler Attachment 1-5P
|REQUIRES Electric Controls to Start / Stop Rotator
|Electric Control Package sold separately

• Model CP-201-E3-208 for 3-phase 208V 60Hz power supply
• Model CP-201-E3-230 for 3-phase 230V 60Hz power supply
• Model CP-201-E3-460 for 3-phase 4600V 60Hz power supply

|Safety Enclosure with Interlock sold separately as Kit GEK-201-E3

Lead Time: 20 Days
