456-E3

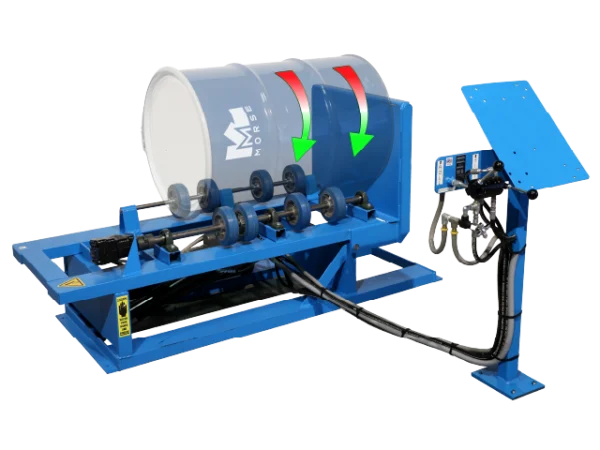

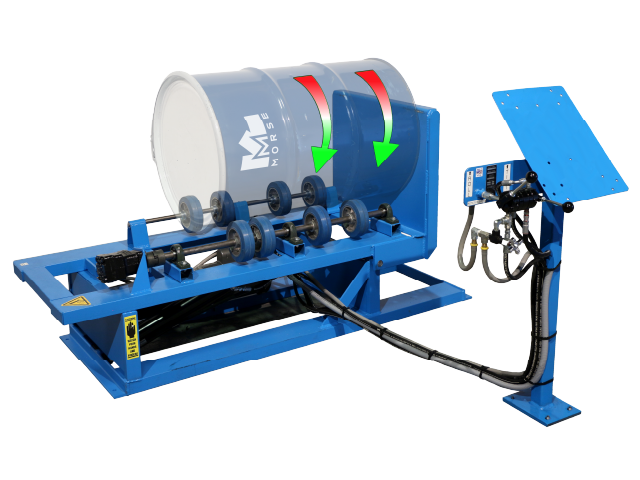

Hydra-Lift Drum Roller. Exp-Proof 3-Phase 208/230/460V 60Hz Motor. REQUIRES Controls to Start/Stop. OSHA REQUIRES Enclosure w/ Interlock

Remix settled ingredients with Drum Roller
|Drum Handling SAFETY Features

• Load upright drum at floor-level with drum truck, etc.
• Mix right inside a closed drum. Nothing to insert into drum.
• Reduce spills, hazards and worker exposure
• Eliminate transfer, clean-up, and special vessels

|Hydraulic power to tilt upright drum over to horizontal rolling position
|Variable Drum Rolling Speed from 5 to 17 RPM (4 to 14 RPM for 50Hz models), based on a 22.5″ diameter drum
|Roll a steel drum
|Add options to roll a plastic drum or a 1-to-5 gallon cylindrical can
|IMPORTANT: OSHA requires enclosure with safety interlock
|Control Package and Guard Enclosure each sold separately

Model 456-E3 has explosion-proof 3-phase 208/230/460V 60Hz motor
|Adjust drum rotation speed
|REQUIRES Electric Control Box to Start / Stop Rotator
|Electric Control Package sold separately

• Model CP-456-E3-208 for 208V 3-phase 60Hz power supply
• Model CP-456-E3-230 for 230V 3-phase 60Hz power supply
• Model CP-456-E3-460 for 460V 3-phase 60Hz power supply

|Guard Enclosure Kit sold separately as model GEK-456-E3

Lead Time: 40 Days
